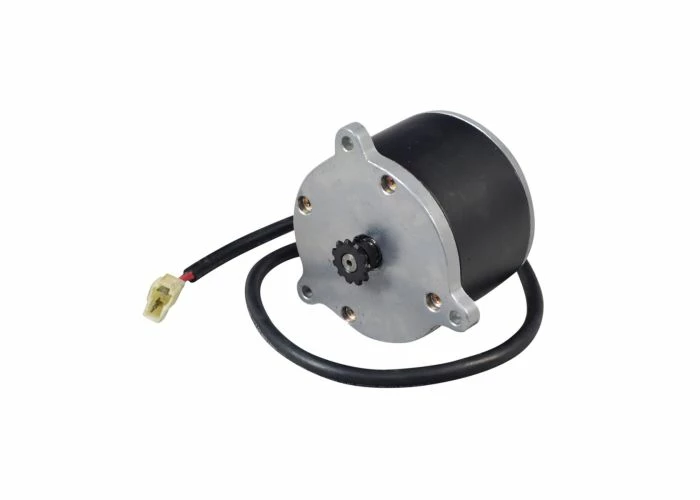

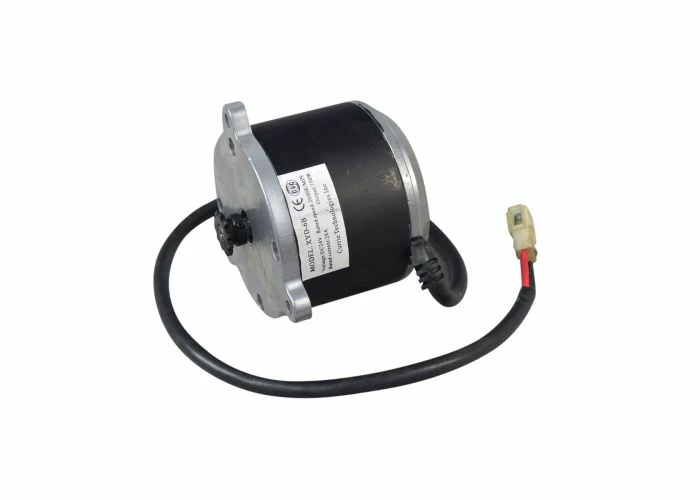

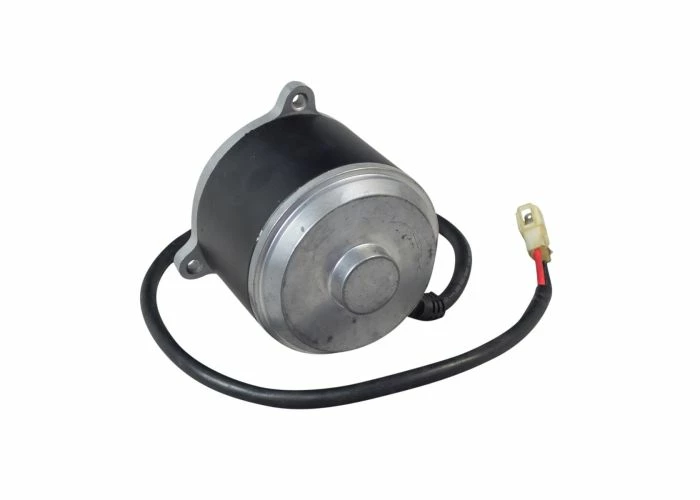

Name: Hot Sale ⭐ Currie Technologies 24 Volt 750 Watt XYD-6B Electric Motor With 11 Tooth #25 Chain Sprocket 🤩
SKU: C80-8775
Availability: InStock

Sale!

Hot Sale ⭐ Currie Technologies 24 Volt 750 Watt XYD-6B Electric Motor With 11 Tooth #25 Chain Sprocket 🤩 - Image 3

Original price was: $129.99.Current price is: $92.99.

24 volt 750 watt
11 tooth #25 chain sprocket
Left or right rotation by reversing wires
XYD-6B motor
2600 RPM
Currie Technologies has set an industry standard for high quality but low cost scooter parts, and this 24 volt 750 watt XYD-6B motor is not an exception to the rule
As Currie Technologies is the parent company for all Schwinn, Mongoose, e-Zip, & IZIP electric scooter products, this motor has great adaptability
30 Day Warranty

SKU: C80-8775 Category: 24 Volt Motors Tag: 24 Volt 750 Watt XYD-6B Electric Motor with 11 Tooth #25 Chain Sprocket

Safe Transactions, Always
Superior Quality Goods
High quality products, hassle-free returns.
Protecting Your Payment Information

Description
Reviews (0)

Description

Currie Technologies has set an industry standard for high quality but low cost scooter parts, and this 24 volt 750 watt XYD-6B motor is not an exception to the rule.

As Currie Technologies is the parent company for all Schwinn, Mongoose, e-Zip, & IZIP electric scooter products, this motor has great adaptability. It will work with all the Currie OEM and Currie compatible parts.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.

⚠ WARNING California Residents: Proposition 65 Warning

Specifications

Model: XYD-6B Motor
Type: Brush
Voltage: 24 volt DC
Rated Speed: 2600 RPM
Rated Current: 28 amp
Output: 750 watts
Rotation: Reversible
Sprocket: 11 tooth #25 chain sprocket
Case Length: 3-3/4″ (95 mm)
Case Diameter: 3-15/16″ (100 mm)
Drive Shaft Length: 1/2″ (13 mm)
Drive Shaft Diameter: 3/8″ (10 mm)
Mounting Hole Distance: 3-15/16″ (100 mm)
