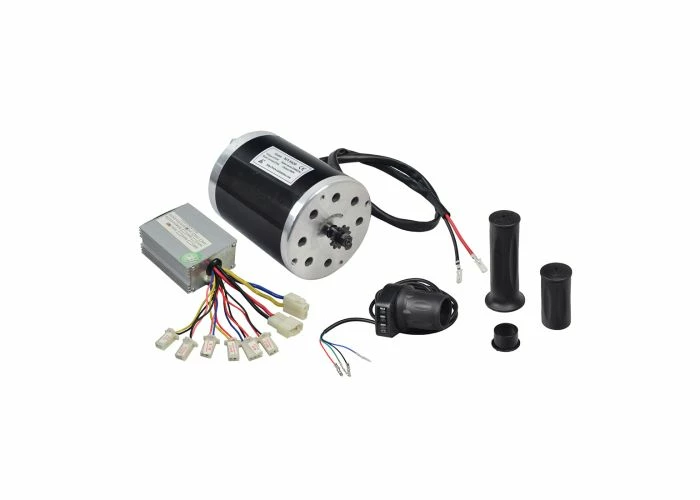

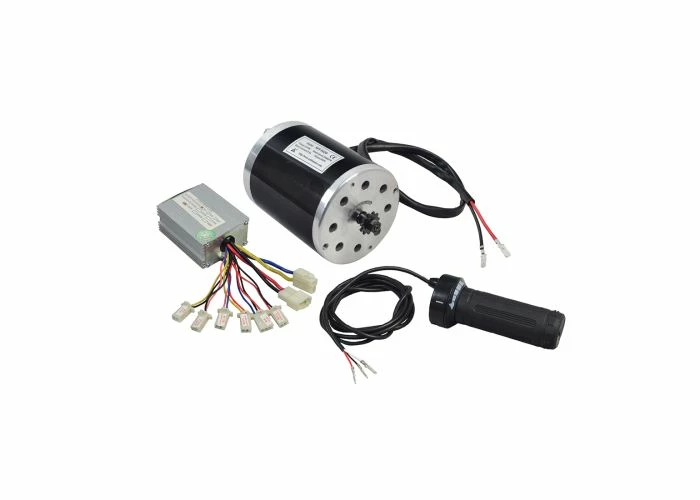

24 volt 500 watt / 500W motor, controller, & throttle conversion kit for electric scooters, bikes, ebikes, go-karts, and an endless list of custom projects..

C80-8742

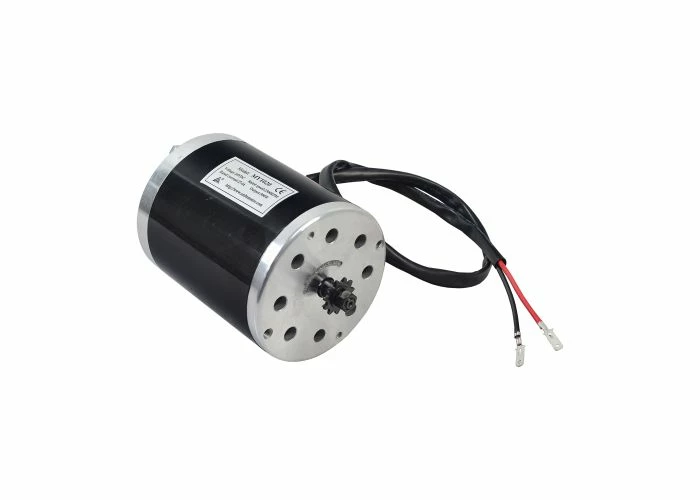

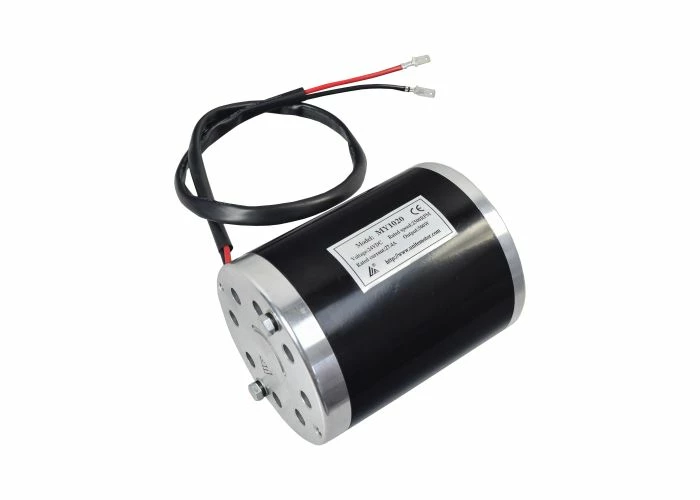

24 Volt 500 Watt Electric Motor with 11 Tooth #25 Chain Sprocket (MY1020)
24 volt 500 watt electric scooter and bike motor with 11 tooth #25 chain sprocket. Two mounting holes on each front and rear face, four mounting holes total. Mounting hole center to center distance is 3-3/4″.

Note: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.

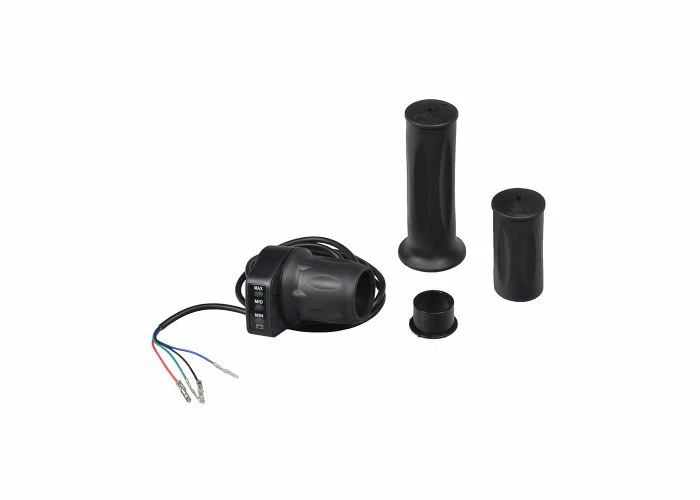

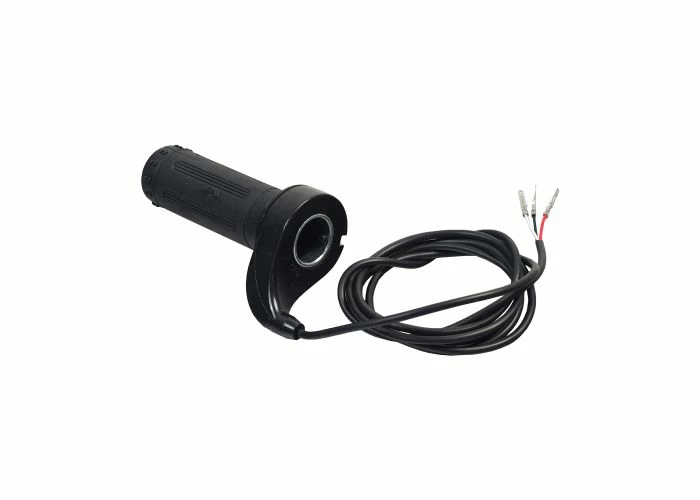

T53-6119 (Full Grip Throttle)

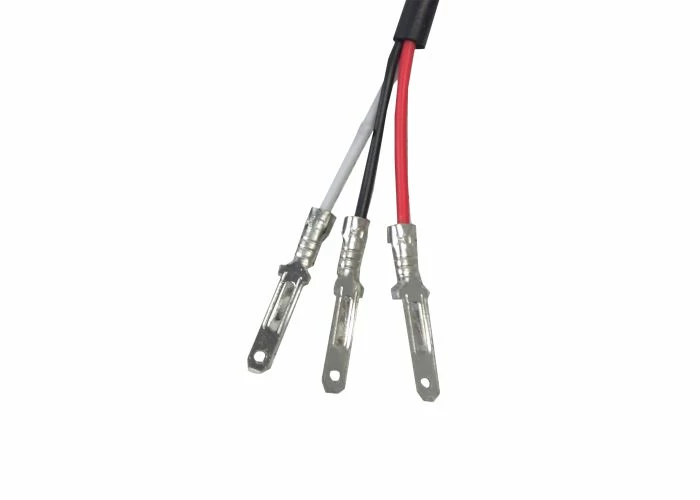

Hand Throttle with 3 Wires
Electric scooter, pocket bike, and dirt bike 3 wire hand throttle. This is the most common type of throttle used on electric scooters.

T53-6109 (Half Grip Throttle)

Like the full throttle listed above, this three-wire hand throttle is typically used in a variety of electric scooter, pocket bike, and dirt bike applications. For situations where a half grip throttle would be more appropriate, we recommend this version of the kit.

Z09-1688

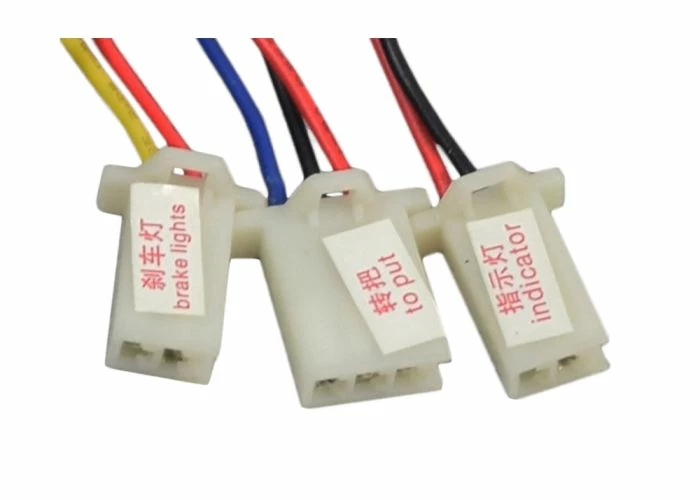

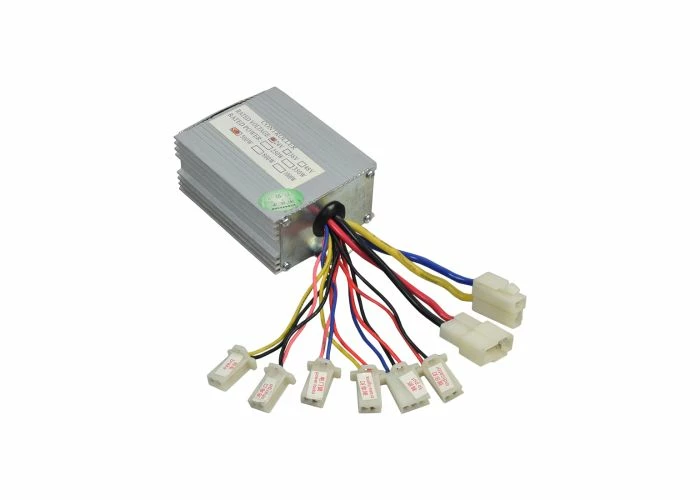

24 Volt 500 Watt Universal Speed & Voltage Controller

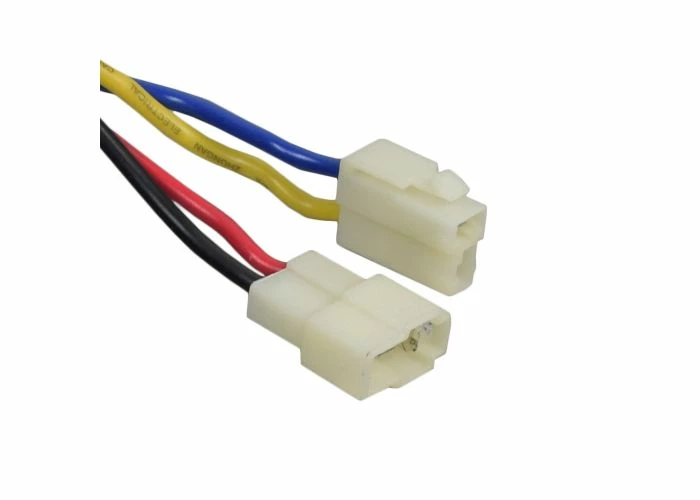

Wiring Details:
Red to Red
Black to Black (or Yellow)
Green (or Blue) to Green (or Blue or White)

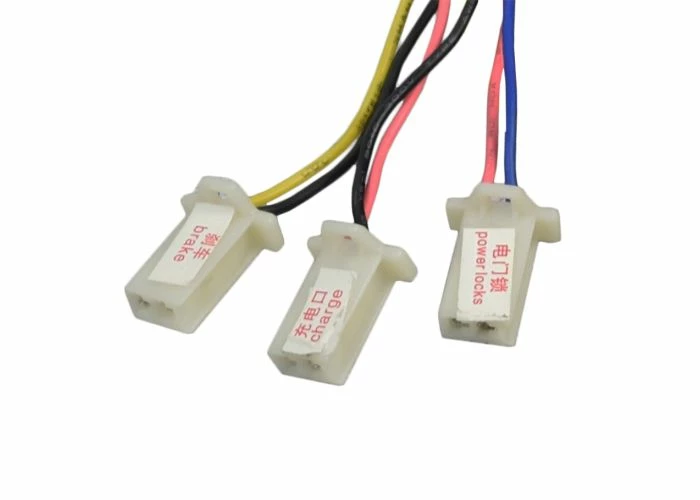

Note: All scooter controllers require a switch, (joined to the “Lock” connector on the controller wires), in order to complete the electrical circuit.

⚠ WARNING California Residents: Proposition 65 Warning

Motor:
MODEL: MY1020
TYPE: Brush
VOLTAGE: 24 Volt DC
RATED SPEED: 2500 RPM

TORQUE: 1.90 N-m
RATED CURRENT: 27.4 Amp

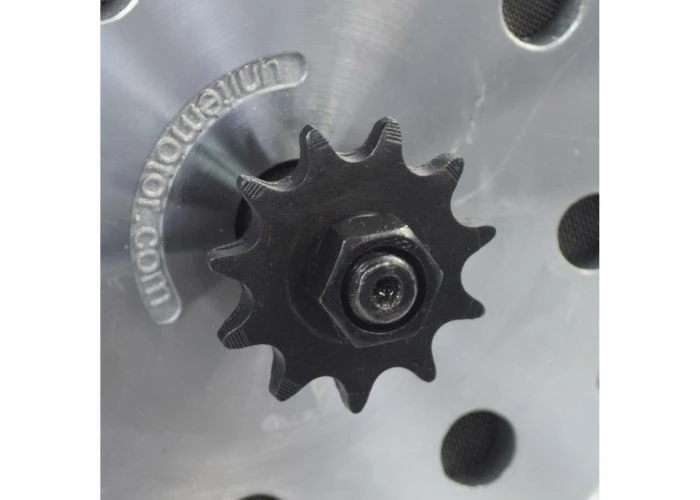

SPROCKET: #25 Chain 11 Tooth
OUTPUT: 500 Watts
LENGTH: 5-1/4″
WIDTH: 4-1/4″
SHAFT LENGTH: 1″

INSIDE THROTTLE DIAMETER: 7/8″
WIRE LENGTH: 61″

Controller:
VOLTAGE: 24 Volts
WATTAGE: 500 Watts
