Name: Top 10 👍 Unite Motor 24 Volt 300 Watt MY1016 Electric Motor With 11 Tooth #25 Chain Sprocket (MY1016) 🥰
SKU: M01-145
Availability: InStock

Sale!

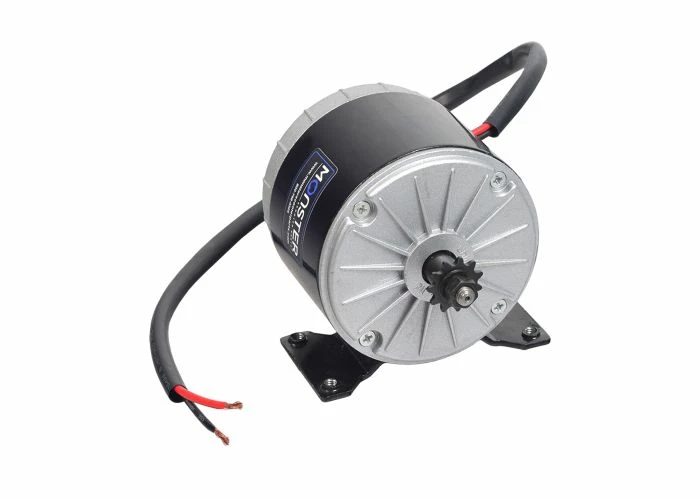

Top 10 👍 Unite Motor 24 Volt 300 Watt MY1016 Electric Motor With 11 Tooth #25 Chain Sprocket (MY1016) 🥰

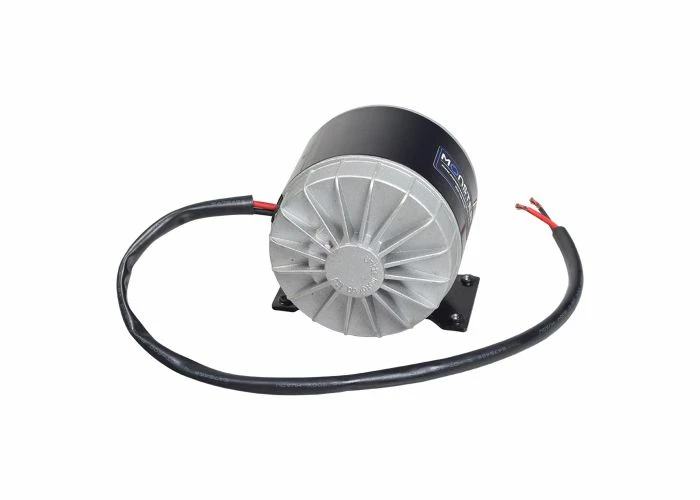

Top 10 👍 Unite Motor 24 Volt 300 Watt MY1016 Electric Motor With 11 Tooth #25 Chain Sprocket (MY1016) 🥰 - Image 2

Top 10 👍 Unite Motor 24 Volt 300 Watt MY1016 Electric Motor With 11 Tooth #25 Chain Sprocket (MY1016) 🥰 - Image 3

Original price was: $52.99.Current price is: $40.27.

24 volt 300 watt
11 tooth #25 chain sprocket
Left or right rotation by reversing wires
MY1016 motor
2650-2900 RPM
24 volt 300 watt MY1016 electric scooter and bike motor
Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket
30 Day Warranty

SKU: M01-145 Category: 24 Volt Motors Tag: 24 Volt 300 Watt MY1016 Electric Motor with 11 Tooth #25 Chain Sprocket (MY1016)

Safe Transactions, Always
Superior Quality Goods
High quality products, hassle-free returns.
Protecting Your Payment Information

Description
Reviews (0)

Description

24 volt 300 watt MY1016 electric scooter and bike motor. Comes with an 11-tooth, #25 chain sprocket as well as a 4-bolt mounting bracket.

Note: This electric motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires (reversing the polarity to the motor).

⚠ WARNING California Residents: Proposition 65 Warning

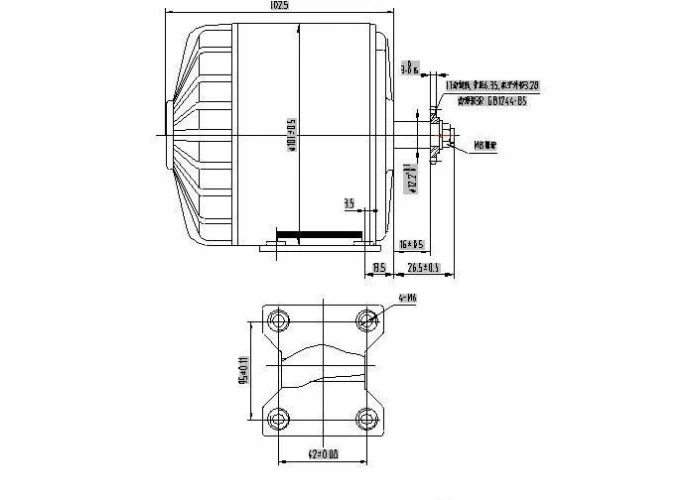

Specifications

Model: MY1016
Voltage: 24 volt DC
Rated Speed: 2650-2900 RPM
Rated Current: 16.0-16.4 amp
Output: 300 watt
Sprocket: 11-tooth #25 chain sprocket
Case Length: 4-1/8″ (105 mm)
Case Diameter: 3-15/16″ (100 mm)
Drive Shaft Length: 1″ (25 mm)
Drive Shaft Diameter: 5/16″ (8 mm)
Bolt Hole Distance (Adjacent): 4-1/8″ (105 mm)
Bolt Hole Distance (Cross Bracket): 2-3/16″ (56 mm)
