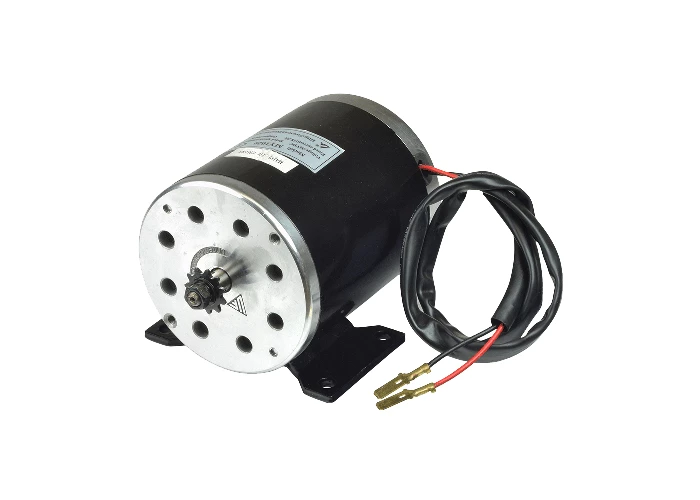

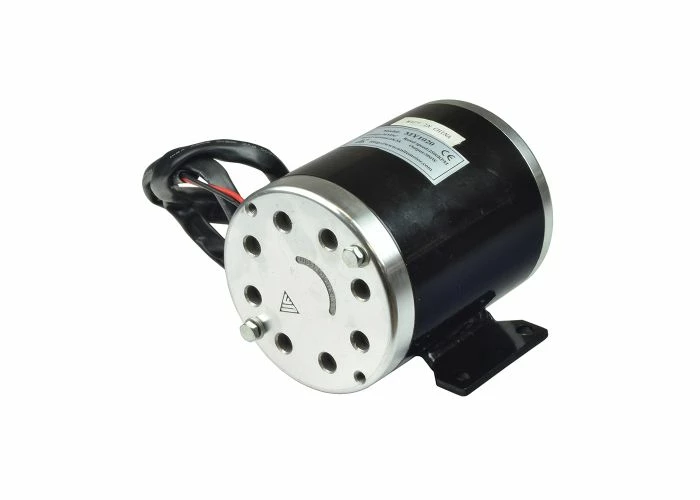

Outlet ✨ Unite Motor 36 Volt 500 Watt MY1020 Electric Motor With 11 Tooth #25 Chain Sprocket & Bracket For Scooters & Bikes 🛒

The 36 volt 500 watt MY1020 electric motor with mounting bracket and #25 chain sprocket works on a number of different models of Minimoto recreational scooters. Please see our compatibility list for more information.

This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.

Note: Mounting hole spacing is approximately 4″ x 2-1/4″ (four threaded holes). These measurements do NOT line up with the Minimoto Maxii 400’s original mounting holes. All customers will need to drill new holes in order to fit this motor.

⚠ WARNING California Residents: Proposition 65 Warning

Model: MY1020
Type: Brush
Voltage: 36 volt
Rated Speed: 2500 RPM
Torque: 1.90 N-m
Rated Current: 18.3 amp
Sprocket: 11 tooth #25 chain sprocket
Output: 500 Watts
Case Length: 5-5/16″ (135 mm)
Case Diameter: 4-1/4″ (108 mm)
Drive Shaft Length: 1-3/16″ (30 mm)
Drive Shaft Diameter: 5/16″ (8 mm)
Bolt Hole Distance (Adjacent): 3-1/4″ (83 mm)
Bolt Hole Distance (Cross Bracket): 1-3/4″ (45 mm)
