Wholesale 🥰 Unite Motor 36 Volt 500 Watt MY1020 Electric Motor With 11 Tooth 8mm 05T Chain Sprocket & Bracket For Scooters, Bikes, & Go-Karts 😀

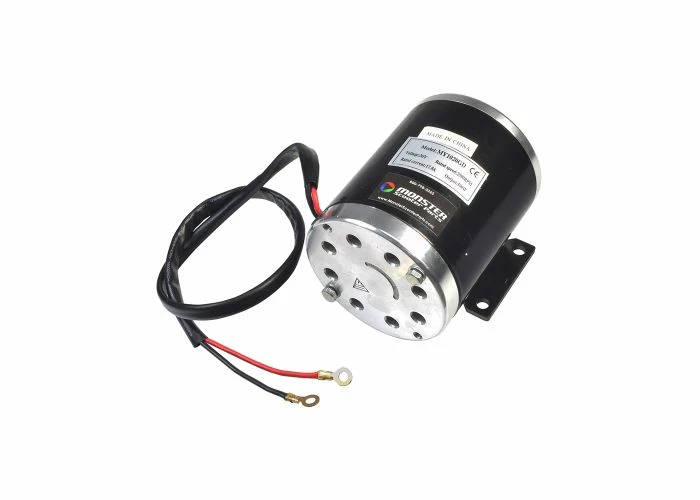

The 36 volt 500 watt MY1020 electric motor with an 11-tooth 8mm 05T chain sprocket and bracket works on a number of different recreational scooters. Additionally, a high output 36 volt motor such as this one can be used in a wide range of custom applications and garage-build projects. Matched with three 12 volt batteries, a universal DC 36V motor controller, and matching hand throttle, and you will have the makings of a fine machine.

This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.

Note: Mounting hole spacing is approximately 4″ x 2-1/4″ (four threaded holes).

⚠ WARNING California Residents: Proposition 65 Warning

Model: MY1020GD
Type: Brush
Voltage: 36 volt
Rated Speed: 2500 RPM
Torque: 1.90 N-m
Rated Current: 17.8 amp
Sprocket: 11 tooth 8mm 05T chain sprocket
Output: 500 Watts
Case Length: 5-5/16″ (135 mm)
Case Diameter: 4-1/4″ (108 mm)
Drive Shaft Length: 1″ (25.4 mm)
Drive Shaft Diameter: 1/2″ (12.7 mm)
Bolt Hole Distance (Adjacent): 4″ (102 mm)
Bolt Hole Distance (Cross Bracket): 2-1/4″ (57 mm)
