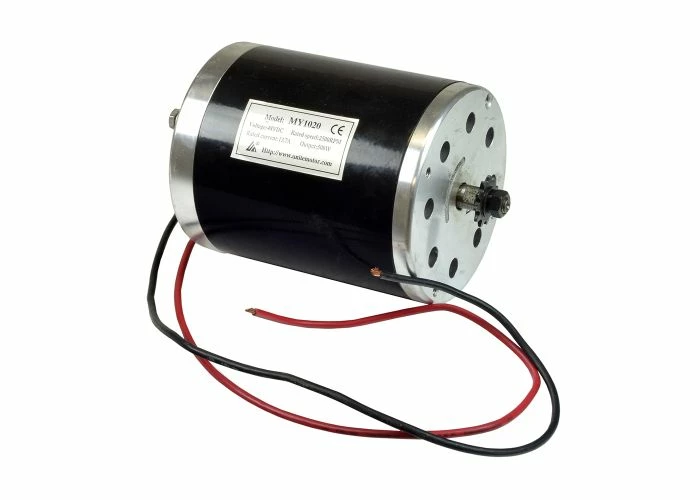

Outlet ❤️ Unite Motor 48 Volt 500 Watt MY1020 Electric Motor With 11 Tooth 8 Mm 05T Chain Sprocket For Scooters, Bikes, & Go-Karts 🔔

Do you need a powerful 48 volt 500 watt electric motor with 8 mm 05T chain sprocket for electric bikes and scooters? We have this beauty at a price that any DIY scooter builder or garage mechanic can afford.

This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor’s power wires.

Our Compatibility list is compiled based on information from various sources and are accurate to the best of our knowledge. However, please verify compatibility with your own scooter before ordering.

⚠ WARNING California Residents: Proposition 65 Warning

Model: MY1020
Type: Brush
Voltage: 48 volt DC
Rated Speed: 2500-3000 RPM
Torque: 1.90 N-m
Rated Current: 13.7 amp
Sprocket: 11 tooth 8 mm O5T chain sprocket
Output: 500 Watts
Weight: 9-1/4 lbs.
Case Length: 5-5/16″ (135 mm)
Case Diameter: 4-1/4″ (108 mm)
Drive Shaft Length: 1″ (25 mm)
Drive Shaft Diameter: 5/16″ (8 mm)
Mounting Hole Distance: 3-3/4″ (95 mm)
